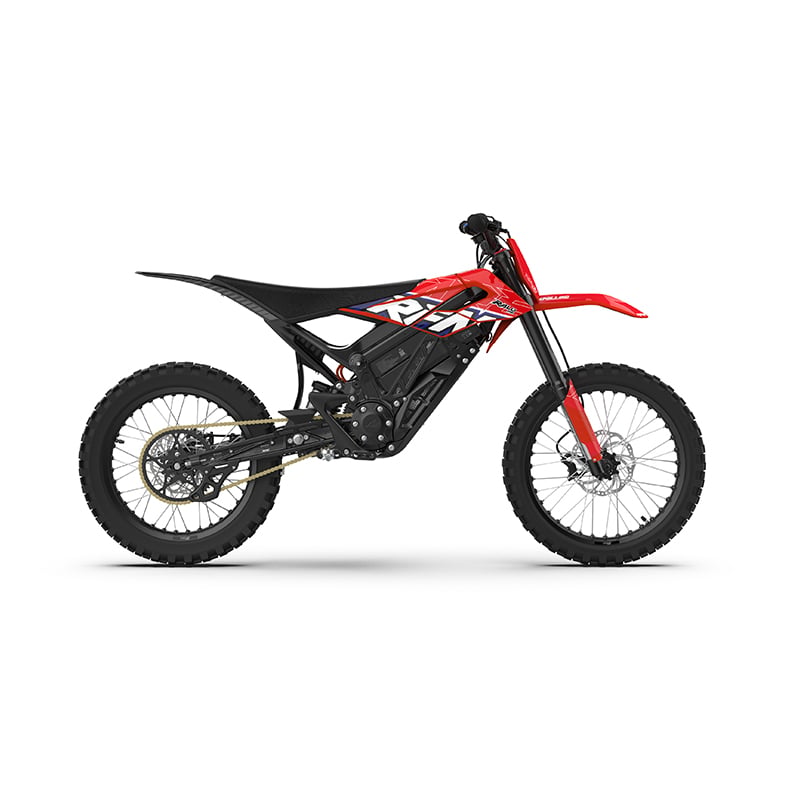

RFN ARES ELECTRIC DIRT BIKE
When we choose the electric dirt bike, it means that we have chosen a lifestyle that most people can not understand.
When I feel that the scenery in front of me is so beautiful, I find that I prefer to feel nature in the breeze rather than being bound by the city.
Vehicle model parameters
|
RFN ARES PRO RFN ARES
Battery
|
|||||
|
Capacity
|
43Ah/3132Wh
|
35Ah/2590Wh
|
|||
|
Type
|
Removable battery; can be charged while on the vehicle or removed and charged separately
|
Removable battery; can be charged while on the vehicle or removed and charged separately
|
|||
|
Drive System
|
|||||
|
Chain
|
420 chain, with DX
|
420 chain, with DX
|
|||
|
Motor
|
Inner rotor permanent magnet synchronous motor
|
Inner rotor permanent magnet synchronous motor
|
|||
|
Front Sprocket
|
11 teeth
|
11 teeth
|
|||
|
Rated Power
|
6.5 kW
|
5 kW
|
|||
|
Peak Power
|
11 kW
|
10 kW
|
|||
|
Rear Sprocket
|
58 teeth
|
58 teeth
|
|||
|
Torque (Motor Shaft)
|
69 N·m
|
58 N·m
|
|||
|
Torque (Wheel)
|
364 N·m
|
305 N·m
|
|||
|
Dimensions
|
|||||
|
Seat height
|
860mm
|
860mm
|
|||
|
Wheelbase
|
1330mm
|
1330mm
|
|||
|
Riding modes
|
|||||
|
Riding mode 1
|
Turtle Mode: 45 km/h
|
Turtle Mode: 45 km/h
|
|||
|
Riding mode 2
|
Rabbit Mode: 78 km/h
|
Rabbit Mode: 78 km/h
|
|||
|
Riding mode 3
|
Rocket Mode: Launch mode, no time limit
|
Rocket Mode: Launcher activation mode, 9 seconds per activation
|
|||
|
Riding mode 4
|
Reverse Mode: Speed limit 9 km/h
|
Reverse Mode: Speed limit 9 km/h
|
|||
|
Speed and Range
|
|||||
|
Range
|
140 km (Test data – Load: 75 kg
|
140 km (Test data – Load: 75 kg
|
|||
|
Constant speed: 25 km/h, Ambient temperature: 25°C
|
Constant speed: 25 km/h, Ambient temperature: 25°C
|
||||
|
Flat road surface, standard tires, standard tire pressure)
|
Flat road surface, standard tires, standard tire pressure)
|
||||
|
Top speed
|
78 km/h
|
65 km/h
|
|||
